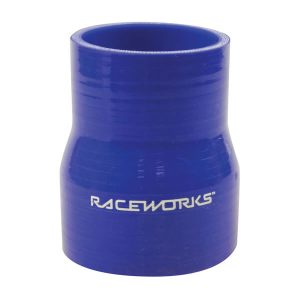

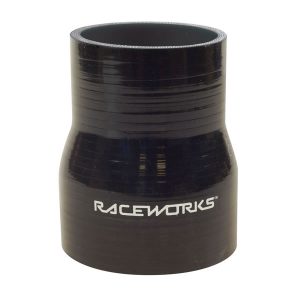

Silicone Hose Straight Reducer

All Raceworks hoses feature solid 5mm walls constructed from 4-ply reinforced silicone polyester.

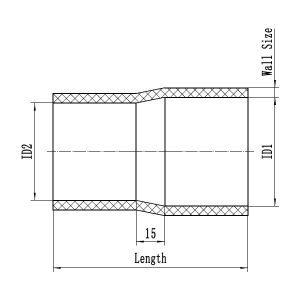

Dia. Imp.	Dia. Metric	Part # Blue	Part # Black	Lth mm	Min. Burst Pres.
0.50″ – 0.75″	13-19mm	SHR-050075BE	SHR-050075BK	102mm	348 PSI
0.75″ – 1.00″	19-25mm	–	SHR-075100BK	102mm	348 PSI
1.00″ – 1.25″	25-32mm	SHR-100125BE	SHR-100125BK	102mm	305 PSI
1.00″ – 1.50″	25-38mm	SHR-100150BE	SHR-100150BK	102mm	305 PSI
1.00″ – 1.75″	25-44mm	–	SHR-100175BK	102mm	305 PSI
1.00″ – 2.00″	25-51mm	SHR-100200BE	SHR-100200BK	102mm	305 PSI
1.25” – 1.50”	32-38mm	–	SHR-125150BK	102mm	305 PSI
1.25” – 1.75”	32-44mm	SHR-125175BE	SHR-125175BK	102mm	305 PSI
1.50” – 1.75”	38-44mm	SHR-150175BE	SHR-150175BK	102mm	305 PSI
1.50” – 2.00”	38-51mm	SHR-150200BE	SHR-150200BK	102mm	305 PSI
1.75” – 2.00”	44-51mm	–	SHR-175200BK	102mm	305 PSI
1.75” – 2.25”	44-57mm	SHR-175225BE	SHR-175225BK	102mm	218 PSI
2.00” – 2.25”	51-57mm	SHR-200225BE	SHR-200225BK	102mm	218 PSI
2.00” – 2.50”	51-63mm	SHR-200250BE	SHR-200250BK	102mm	218 PSI
2.00” – 2.75”	51-70mm	SHR-200275BE	SHR-200275BK	102mm	218 PSI
2.00” – 3.00”	51-76mm	SHR-200300BE	SHR-200300BK	102mm	218 PSI
2.25” – 2.50”	57-63mm	SHR-225250BE	SHR-225250BK	102mm	174 PSI
2.25” – 2.75”	57-70mm	SHR-225275BE	SHR-225275BK	102mm	174 PSI
2.25” – 3.00”	57-76mm	SHR-225300BE	SHR-225300BK	102mm	174 PSI
2.50” – 2.75”	63-70mm	SHR-250275BE	SHR-250275BK	102mm	174 PSI
2.50” – 3.00”	63-76mm	SHR-250300BE	SHR-250300BK	102mm	174 PSI
2.50” – 3.25”	63-83mm	–	SHR-250325BK	102mm	174 PSI
2.75” – 3.00”	70-76mm	SHR-275300BE	SHR-275300BK	102mm	174 PSI
2.75” – 3.50”	70-89mm	SHR-275350BE	SHR-275350BK	102mm	174 PSI
3.00” – 3.25”	76-83mm	SHR-300325BE	SHR-300325BK	102mm	174 PSI
3.00” – 3.50”	76-89mm	SHR-300350BE	SHR-300350BK	102mm	174 PSI
3.00” – 3.75”	76-95mm	SHR-300375BE	SHR-300375BK	102mm	174 PSI
3.00” – 4.00”	76-102mm	SHR-300400BE	SHR-300400BK	102mm	174 PSI
3.25” – 3.50”	83-89mm	SHR-325350BE	SHR-325350BK	102mm	174 PSI
3.25″ – 3.75″	82-95mm	SHR-325375BE	SHR-325375BK	102mm	174 PSI
3.25” – 4.00”	83-102mm	SHR-325400BE	SHR-325400BK	102mm	174 PSI
3.50” – 3.75”	89-95mm	SHR-350375BE	SHR-350375BK	102mm	145 PSI
3.50” – 4.00”	89-102mm	SHR-350400BE	SHR-350400BK	102mm	145 PSI
3.50” – 4.50”	89-114mm	SHR-350450BE	SHR-350450BK	102mm	145 PSI
3.75” – 4.00”	95-102mm	SHR-375400BE	SHR-375400BK	125mm	145 PSI
3.75″ – 4.50″	95-114mm	SHR-375450BE	SHR-375450BK	125mm	145 PSI
4.00” – 4.50”	102-114mm	SHR-400450BE	SHR-400450BK	125mm	145 PSI
4.00” – 5.00”	102-127mm	SHR-400500BE	SHR-400500BK	125mm	145 PSI
4.50” – 5.00”	114-127mm	SHR-450500BE	SHR-450500BK	125mm	145 PSI
5.00” – 6.00”	127-152mm	SHR-500600BE	SHR-500600BK	125mm	145 PSI
